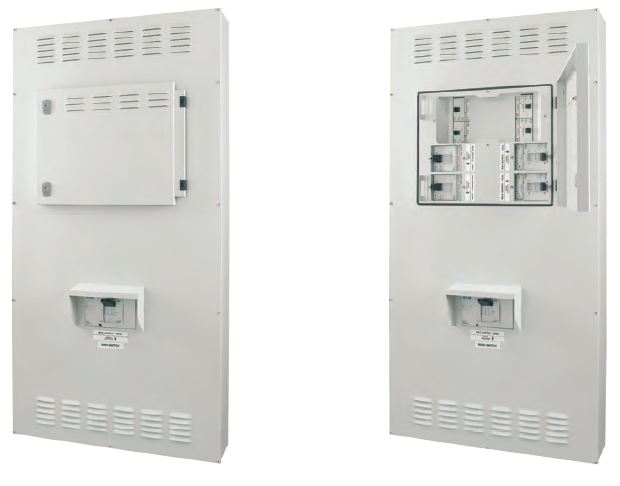

“TAURUS offer a complete range of MCCB panelboards and pan assemblies providing endless options right from locally assembled or straight from EATON factory .From a straightforward panelboard to a complex panelboard system. Designed and manufactured with precision and commitment, TAURUS or EATON panelboards consistently meet the needs of consultants and contractors providing features, ratings, and performance that exceed expectation.

TAURUS offer a variety of incoming devices and an extensive choice of outgoing ways to provide flexibility and choice to the user. TAURUS Panelboards are ideal for new construction and system upgrades in both commercial and industrial facilities.”

• Can be configured for incomer device at the top of the panel board.
• Available in 250A, 400A, 630A, 800A, and 1250A versions.
• 4 to 18 outgoing TP ways.
• 3 or 4 pole incoming devices can be fitted.
• Outgoing MCCBs up to 630A available in 25kA, 36kA, and 50kA breaking capacity.
• MCCBs with Thermal Magnetic, Electronic, or Motor rated trip facility.
• Standard IP43 construction, up to IP54.
• Form 2b segregation as standard.
• Form 4 Type 6 segregation achieved by use of 3P/4P Incoming MCCB and 3P/4P Feeder MCCBs.
• Option to remove top and bottom cross rails allows cables to be laid into the board instead of feeding through the gland plate aperture, saving installation time.
• Incoming and outgoing metering options to ensure local regulations compliance.
• Wide range of extension boxes, metering, surge protection, and earth leakage incomer options available.
• Versatile solution accommodating different frame size outgoing MCCBs to match application needs.
• Blanking plates provide finger protection for unused outgoing ways.

• Rated Insulation Voltage (Ui): 800V / 1000V
• Impulse Withstand Voltage (Uimp): 8kV
• Rated Operational Voltage (Un): 415V
• Degree of Protection: IP43 / IP54
• Short-Circuit Withstand Current (Icw): 50kA for 1 sec & 36kA for 1 sec
